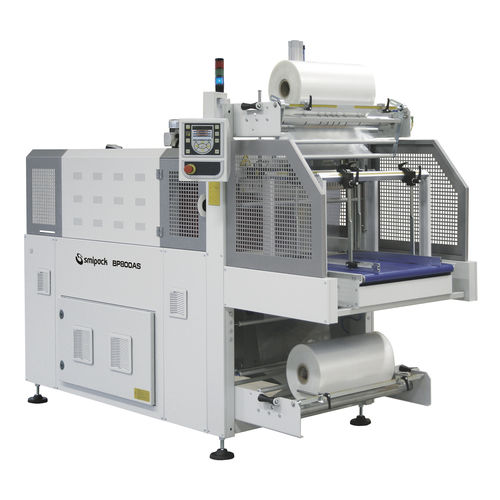

Automatic shrink wrapper BP800AS

for PET bottlesfor boxesfor bottle packs

The BP series of monobloc semi-automatic and automatic shrink wrappers with sealing bar stands out for its versatility. Depending on the model, in fact, this range of packaging machines is particularly suitable for packing a very wide range of products belonging to different market sectors in film only or pad + film. Equipped with 90° or in-line infeed, multi-push system and cutting-edge technology, these machines are perfectly and easily integrated into shrink film packaging lines. The BP Series can reach productions up to 25 packs/minute. Characteristics : • Power supply : 220 - 240 / 380 - 415 V 3PH + PE / 3PH + N + PE 50/60 Hz • Installed power : 17180 W • Air pressure : 6 Bar • Required air : 13 Nl/p* • Product maximum height : 380 mm • Sealing bar : 760 mm • Maximum size of film reel : 750 x Ø 350 mm • Working board height : 945 - 1105 mm • Machine size : h 2105 - 2265 mm • Machine net weight : 625 Kg • Advised film: LDPE : 20 - 100 µ Technical data : • Automatic in-line shrink wrapper • Mono-chamber tunnel • Maximum pack length: 1200 mm • Infeed conveyor with adjustable speed controlled by inverter • Motorized upper film unwinding controlled by inverter • Motorized lower film unwinding • Infeed conveyor product guides adjustable in height and width • Possibility to make reference either to the photocell reading or to the pack length • Automatic, semiautomatic, pass through mode • Included: feet for the machine fastening, press rod to stop products, cooling fan at the tunnel outlet
