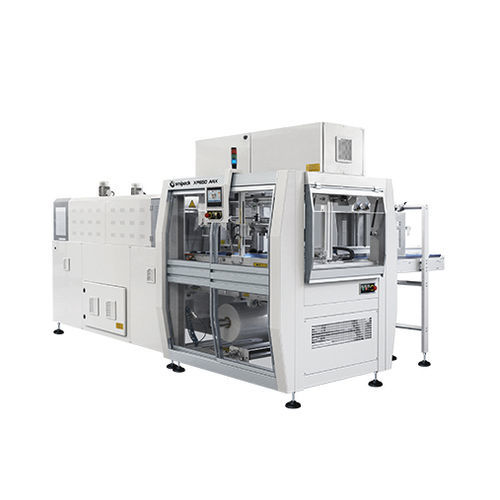

Automatic shrink wrapper XP650 ARX

for the food and beverage industrytrayfor cartons

The XP series from automatic monobloc overlap shrink wrappers offers many advantages compared to other packaging systems, such as the use of a single film reel compared to the sealing bar system. These models are also suitable for centering the printed film and enable to significantly increase the output. The XP series is particularly suitable to pack glass and PET bottles, cans, boxes, trays, jars, etc. in film only, pad + film or tray + film. The XP Series can reach productions up to 25 packs/minute. Characteristics : • Power supply : 220 - 240 / 380 - 415 V 3PH + PE / 3PH + N + PE 50/60 Hz • Installed power : 35200 W • Air pressure : 6 Bar • Required air : 9,5 Nl/p* • Product maximum height : 380 mm • Maximum size of film reel : 650 x Ø 400 mm • Working board height : 1045 - 1205 mm • Machine size : h 2150 - 2310 mm • Machine net weight : 1540 Kg • Advised film: LDPE : 25 - 80 µ Technical data : • Automatic overlap shrink wrapper with 90° infeed conveyor • Sliding protection doors with deceleration device • Automatic pack collation • Working modality: only film • Double-chamber tunnel • 90° infeed conveyor with adjustable speed controlled by inverter • Machine available with left or right operator side • Infeed rows: 1, 2, 3 • Photocells for product presence, infeed obstruction, separation, film wrapping, tunnel outlet obstruction and outlet accumulation included
