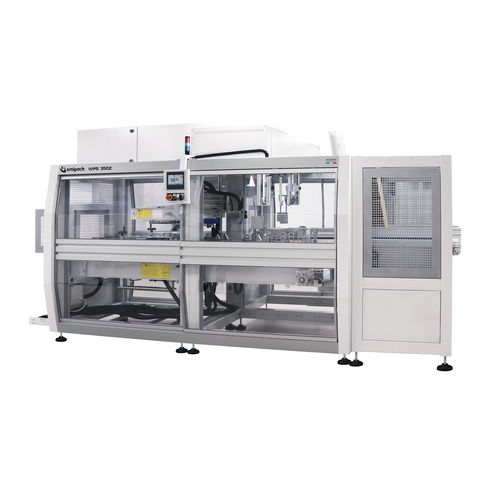

Wrap-around case packer WPS 350Z

automaticfor bottle packsfor wine

The WPS series of automatic wrap-around case packer are suitable for packing a wide range of products in tray, open case, closed case, shelf-ready or display and for meeting the highest production standards and quality regulations. Its compact design reduces the need for large spaces for installation and the extensive use of high-tech components enables to reach high productions in a short time. The WPS case packers allow to work three different types of cardboard: micro corrugated, corrugated and kraft, and can reach productions up to 25 packs/minute. Characteristics : • Power supply : 220 - 240 / 380 - 415 V 3PH + PE / 3PH + N + PE 50/60 Hz • Installed power : 10600 W • Air pressure : 6 Bar • Required air : 17 Nl/p* • Product minimum height : 75 mm • Product maximum height : 350 mm • Working board height : 960 - 1105 mm • Machine size : 4790 x 3550 mm • h 2190-2335 mm • Machine net weight : 2160 Kg Technical data : • Automatic wrap-around case packer with 90° infeed • Sliding protection doors with deceleration device. • Blank magazine at fixed height, equipped with motorized conveyor • Photocell for stock of cardboards • Blank magazine capacity: 300-400 pcs • Open cardboard dimensions: min 300x500 mm max 750x1300 mm – min 11.81"x19.69" mm max 29.53"x51.18" mm • Cardboard thickness: from 1,8 mm up to 3 mm or from 0,54 mm up to 0,60 mm (kraft) • Automatic pack collation • In line infeed conveyor with adjustable speed controlled by Inverter • One-row or multi-row infeed • Photocell for infeed conveyor speed change • Product presence photocells • Accumulation/control rows photocells
