In-line shrink wrapper XP650 ALX-T
automatictrayfor the food and beverage industry

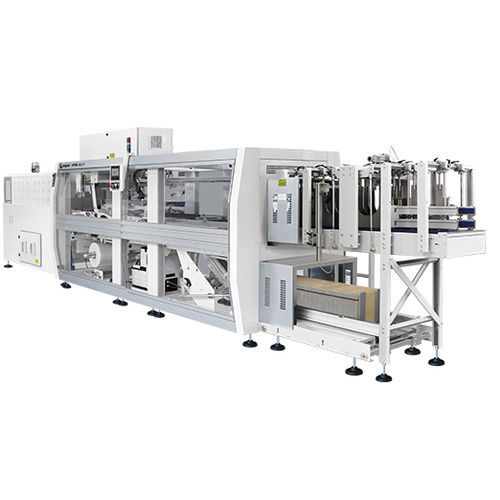

In-line shrink wrapper - XP650 ALX-T - Smipack S.p.A. - automatic / tray / for the food and beverage industry
In-line shrink wrapper - XP650 ALX-T - Smipack S.p.A. - automatic / tray / for the food and beverage industry
In-line shrink wrapper - XP650 ALX-T - Smipack S.p.A. - automatic / tray / for the food and beverage industry - image - 2
In-line shrink wrapper - XP650 ALX-T - Smipack S.p.A. - automatic / tray / for the food and beverage industry - image - 3
In-line shrink wrapper - XP650 ALX-T - Smipack S.p.A. - automatic / tray / for the food and beverage industry - image - 4
In-line shrink wrapper - XP650 ALX-T - Smipack S.p.A. - automatic / tray / for the food and beverage industry - image - 5
In-line shrink wrapper - XP650 ALX-T - Smipack S.p.A. - automatic / tray / for the food and beverage industry - image - 6
In-line shrink wrapper - XP650 ALX-T - Smipack S.p.A. - automatic / tray / for the food and beverage industry - image - 7
Add to favorites
Compare this product


Characteristics

Operational mode
automatic
Product applications
tray, for the food and beverage industry, for glass bottles, for cartons, for boxes, for cans, for boxes, for PET bottles, for the wine industry, for cosmetic products, for chemicals, for bottle packs, alcoholic beverage, for trays, for small containers, bottle
Other characteristic
with shrink tunnel, in-line
Throughput

25 p/min

Width

1,575 mm
(62 in)

Length

8,465 mm
(333.3 in)

Description

The XP series from automatic monobloc overlap shrink wrappers offers many advantages compared to other packaging systems, such as the use of a single film reel compared to the sealing bar system. These models are also suitable for centering the printed film and enable to significantly increase the output. The XP series is particularly suitable to pack glass and PET bottles, cans, boxes, trays, jars, etc. in film only, pad + film or tray + film. The XP Series can reach productions up to 25 packs/minute. Characteristics : • Power supply : 220 - 240 / 380 - 415 V 3PH + PE / 3PH + N + PE 50/60 Hz • Installed power : 39000 W • Air pressure : 6 Bar • Required air : 14 Nl/p* • Product maximum height : 380 mm • Maximum size of film reel : 650 x Ø 400 mm • Working board height : 1045 - 1205 mm • Machine size : h 2150 - 2310 mm • Machine net weight : 2860 Kg • Advised film: LDPE : 25 - 80 µ Technical data : • Automatic overlap shrink wrapper with in-line infeed conveyor • Sliding protection doors with deceleration device • Automatic pack collation • Product infeed oriented by means of electromechanical oscillating sorter • Tray inserting device: • picking by pneumatic picker • cardboards stock 300 pcs • cardboards dimensions min 200x145 mm max 600x400 mm • tray dimensions min 150x60 mm max 500x320 mm • dimensions of tray flaps min 30 mm max 80 mm • cardboard thickness min 2,5 mm max 3,5 mm • motorized cardboard carrying and insertion, self centering, controlled by inverter and encoder, electronically synchronized with the • arrival of the products • hot melt glue application system
