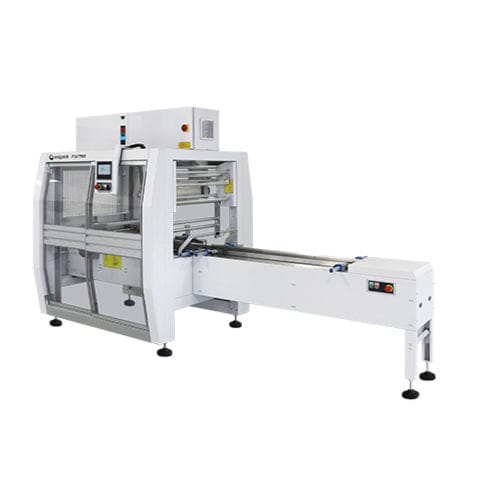

Flow-pack bagging machine FW750

horizontalautomaticmultipack

The new FW series of automatic packaging machines with flow pack system, designed according to Industry 4.0 and IoT (Internet of Things) technological platforms, is the family of machines that completes the SMIPACK range. The version with rotary bar sealing system is composed of 6 models (four with upper reel and two with lower reel) and packs a wide range of products with irregular shapes and small dimensions that arrive at the machine either loose (single doses) or previously grouped (multipack); the products are placed in packages made up of simple or coupled flexible material with a maximum output between 60 and 200 products/minute (based on the selected model). Thanks to the three pairs of pneumatic opening wheels, which perform the dragging, longitudinal sealing and film folding operations, and the dynamic or adjustable conformer complete with accessories, the packaging process of the new FW models is simple and fast. Characteristics : • Power supply : 220 - 240 / 380 - 415 V 3PH + PE / 3PH + N + PE 50/60 Hz • Installed power : 4800 W • Compressed air pressure : 6 bar • Sealing bar : 350 mm • Maximum product height : 120 mm • Maximum size of film reel : 750 - ø 350 mm • Machine size : 4085 x 1580 mm • h 2155 - 2255 mm • Machine net weight : 780 kg Technical data : • High reel flow pack wrapper • Sealing system with rotary bar • Sliding surfaces of the products in AISI304 • 1500 mm - 59.06" infeed conveyor with adjustable guides • Easily removable interlocking vanes
