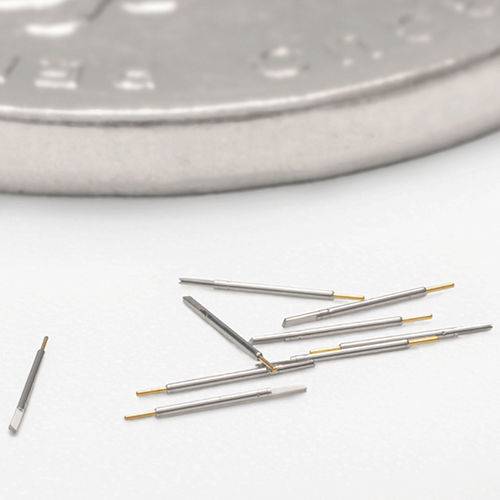

Kelvin probe
testmeasurement

Kelvin probe - Smiths Interconnect - test / measurement
Kelvin probe - Smiths Interconnect - test / measurement
Add to favorites
Compare this product


Characteristics

Type
test
Measured value
Kelvin
Domain
measurement

Description

Kelvin Probes for Peripheral and Array Devices Innovative and robust spring probe technology for Kelvin contact applications down to 0.35mm pitch. The product’s unique chisel tip provides reliable, stable contact resistance for critical applications such as loT, Automotive where test performance cannot be sacrificed. Designed into Standard Array test sockets or Volta WLCSP probe heads, Kelvin probes provide a robust, low maintenance, long life, test solution. For even longer life, Kelvin probes can be optimized with Smiths Interconnect’s proprietary homogenous alloy to deliver a high touchdown count HVM production solution. Features & Benefits Technical Features - Device contact pitch: 0.35mm pitch and above - Operating Temperature Range: -55°C to 120°C - Device packages: BGA, WLCSP, QFN - Pin-to-pin tip distance is 0.07mm-0.14mm, depending on the pin used - Insertions: >500,000 - Innovative beveled offset tip allows for tighter centers, down to 0.125mm on the device pad Benefits - Suited for 0.35mm pitch and above applications - Four-terminal measurement for low resistance power and analog test - Ease of maintenance - Excellent signal integrity - Self-cleaning Smiths Interconnect has developed an innovative and robust spring probe technology for Kelvin contact applications down to 0.35mm pitch. The product’s unique chisel tip provides reliable, stable contact resistance for critical applications such as loT, Automotive where test performance cannot be sacrificed. Designed into Standard Array test sockets or Volta WLCSP probe heads, Kelvin probes provide a robust, low maintenance, long life, test solution.
