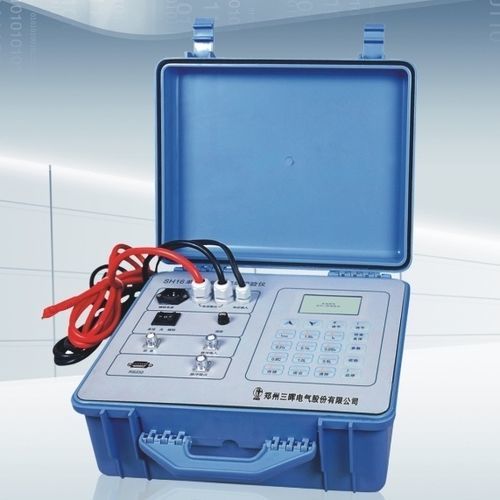

Single-phase electric energy meter SH16

portablewith LCD display

Name: SH16 Single phase energy meter on-site device Specifications 　　1.Certificate: ISO 9001 　　2.Accuracy class: 0.05, 0.1 　　3.High stability 　　4.Prompt delivery 　　5.Excellent aftersale Service 　　SH16 Single Phase Energy Meter Calibrator( At Work site) 　　Main Performance: 　　1. Inner setting programmed power source, scientific meter calibrator. 　　2. Current output: 060A, satisfying the calibration for different meters and more testing points. 　　3. The phase between the voltage on site and current output: 0359.9° shall be adjusted. 　　4. Measurement on site without disconnecting power circuit by current clamps. 　　5. Error, voltage, current, phase, frequency, and power factor can be tested directly. 　　6. LCD display, simple and easy operation interface. 　　7. Low power consumption, high accuracy and convenient and portable. 　　Index: 　　1.Accuracy class: 0.2, 0.3. 　　2.Phase scope: 0359.9°, adjusted resolution: 0.1°. 　　3.Current output scope: 060A, continually adjusting, detailed range: 1A, 5A, 20A, 60A. 　　4.Traceable city power frequency: 45.0065.00 HZ. 　　5.Power supply: 45.0065.00 HZ.; 220V±10%. 　　6..Power consumption: <=120VA. 　　7.Working circumstance: 　　temperature: 0-40°C, humidity:30%-80%RH. 　　Dimension: 406X330X174MM
