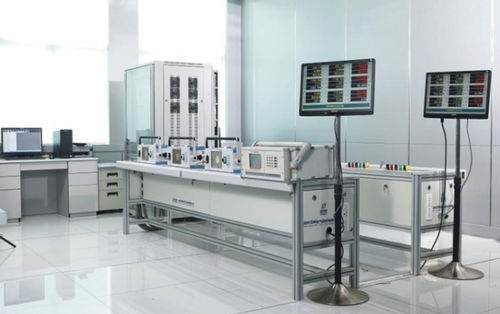

Electric calibration and test bench

computer-controlledfor electric energy meters

12 positions 0.01 class three phase energy meter standard device 　　When checking the energy meter in quantities, the concentration ratio of the checked device is greatly increased, and the standard meters and the device in the same type may be more than hundreds, and it become more and more important to check the standard energy in cycle. The new topic which faces the meter administrator is how to check the meter in quick speed and accuracy and make them work in normal condition. The traditional 3 positions meter cannot meet the need of check quantities in quantity, so SMS company produces the 12 positions standard device, which fill the gap in this filed, and achieve the advanced level in the world. 　　Optional standard meter: COM3003, RD33, K2006, C1-2 and so on. 　　The accuracy class of the device: 001 class 　　Checking the standard meter number at the same time: 12 positions 　　Current: 0.1—100A, Max output power: 700VA 　　Voltage: 60—400V, Max output power: 280VA 　　Output power stability: ≤0.005% 　　The output waveform distortion: ≤0.2% 　　Optional standard meter: COM3003, RD33, K2006, C1-2 and so on. 　　The accuracy class of the device: 001 class 　　Checking the standard meter number at the same time: 12 positions 　　Current: 0.1—100A, Max output power: 700VA 　　Voltage: 60—400V, Max output power: 280VA 　　Output power stability: ≤0.005% 　　The output waveform distortion: ≤0.2%
