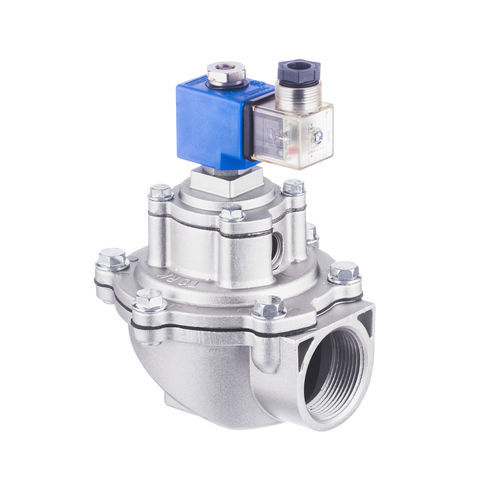

Pulse solenoid valve PL1010
pilot-operated2-waynormally closed

pulse solenoid valve
pulse solenoid valve
pulse solenoid valve
Add to favorites
Compare this product


Characteristics

Control
pilot-operated
Ports/positions
2-way
Function
normally closed
Medium
air
Body
IP65, aluminum
Process connection
G 3/4, G 1, G 1 1/2, G 2, G 3, G 2 1/2
Other characteristics
pulse
DN

Min.: 0.75 in

Max.: 3 in

Voltage

Min.: 12 V

Max.: 230 V

Temperature

Min.: -10 °C
(14 °F)

Max.: 160 °C
(320 °F)

Pressure

Min.: 0.5 bar
(7.3 psi)

Max.: 8 bar
(116 psi)

Description

TORK-PL / PL1010 Series TORK dust collector valve, pulse solenoid valves are normally closed position. (shaker valves, diaphragm valves are another names of pulse valves) screwed connection, with coil body. It clean dust bag filters. Valves are controlled by multi out timer. Body :Aluminum Connection: 3/4" up tp 3"

Catalogs

Pulse Valve
Pulse Valve
16 Pages
