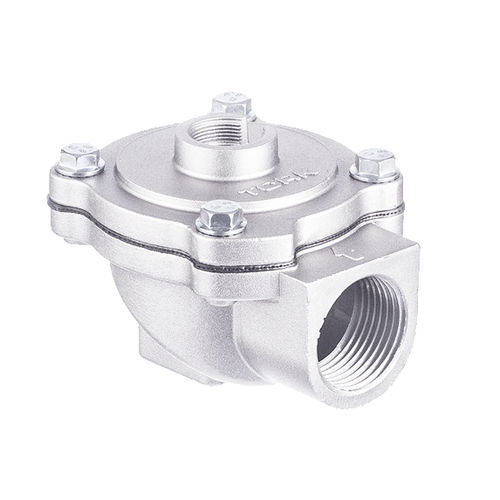

Pilot-operated solenoid valve PX1020 Series2-waynormally closedair
Add to favorites
Compare this product
Characteristics
- Control
- pilot-operated
- Ports/positions
- 2-way
- Function
- normally closed
- Medium
- air
- Body
- aluminum
- Process connection
- G 3/4, G 1, G 1 1/2
- Other characteristics
- explosion-proof, pulse, for explosive atmospheres, remote control
- DN
Max.: 40 in
Min.: 20 in
- Voltage
Max.: 230 V
Min.: 12 V
- Temperature
Max.: 120 °C
(248 °F)Min.: -40 °C
(-40 °F)- Pressure
Max.: 8 bar
(116 psi)Min.: 0.5 bar
(7.3 psi)
Description
Application : Compressed Air , dust collector services
Size : 3/4”, 1", 1 ½”
Working Pressure : 0,5…8 Bar
Coil, Tube : Stainless Steel
Body : Aluminum
Seal : Thermoplastic
Fluid Temperature : -40°C…120 °C
Position : Normally closed
Coil Voltage : 230V, 110V , 48V, 24V , 12V AC ; 110V , 48V , 24V , 12 V DC
Protection Class: Atex
