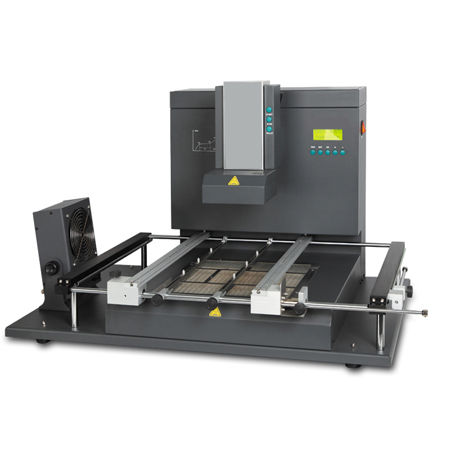

BGA rework station SMT-7610
Add to favorites
Compare this product
Characteristics
- Applications
- for BGA
Description
Specifications: Infrared
General Power
2400W(max)
Power of top heater
720W(120W*6, infrared heating tube, 2-8μm wave length, size 60*60mm)
Power of bottom heater (hot air)
1600W(400W*4, dark infrared heater)
Bottom heating range
260*260mm
MAX PCB Size
420*500mm
MAX BGA Size
60*60mm
Infared Temperature sensor
0-300°C(Temperature range)
Communication
Standard RS-232C(be connected with PC)
Weight
36kg
Dimension
800(L)mm*580(W)mm*520(H)mm
