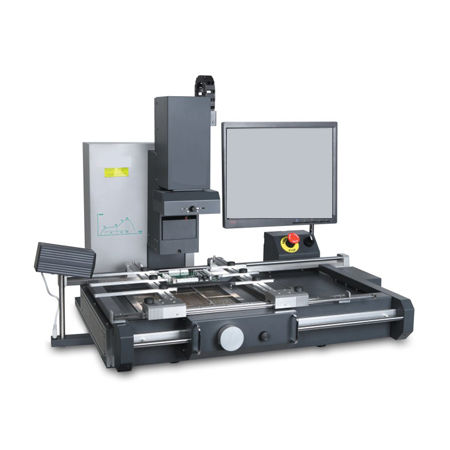

BGA rework station EA-H00
Add to favorites
Compare this product
Characteristics
- Applications
- for BGA
Description
Specifications:
General Power
2400W(max)
Power of top heater
720W(120W*6, infrared heating tube, wavelength about 2-8μm)
Power of bottom heater (hot air)
1600W(400W*4, dark infrared heater)
2000W(200W*4, high infrared heating tube, optional)
Top heating range
20-60mm(X, Y adjustable)
Heating time of top heater
About 10s(room temperature~230°C)
Bottom heating range
290*290mm
Max PCB size
400*400mm
Communication
Standard USB connector(with PC)
Temperature sensor
Non-contact infrared sensor
Movable motor
Step motor
Weight
40kg
Dimension
850(L)mm*650(W)mm*730(H)mm
RPC
22*10 times magnifying
Horizontal resolution: 480 lines
PAL format
