Stationary pump industrialfor the mining industryhigh-pressure
Add to favorites
Compare this product
Characteristics
- Mobility
- stationary
- Domain
- industrial, for the mining industry
- Applications
- high-pressure, drum, lubrication
- Protection level
- heavy-duty
- Other characteristics
- heavy-duty
- Flow
Min.: 120 l/min
(31.70065 us gal/min)Max.: 360 l/min
(95.10194 us gal/min)- Pressure
241 bar
(3,495.409 psi)
Description
Lubrication pumps for heavy duty mining trucks, hydraulically driven, available for single line lubricators, progressive systems, dual line systems, etc.

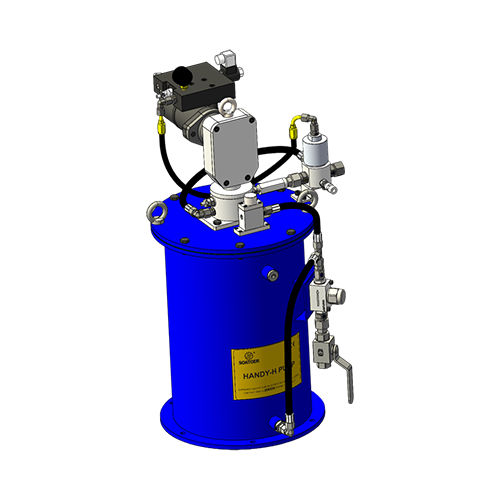

HANDY-H is a hydraulically driven high pressure barrel lubrication pump. The technical parameters are as follows:
1. Displacement: 120-360ml/min adjustable
2. Maximum working pressure: 241bar
3. Lubricant: NLGI 000-2
4. Applicable oil drum 27KG\41KG\180KG
5. Lubricant output thread: G3/8
6. Maximum pressure of hydraulic oil input: 200bar
7. The flow of hydraulic oil input: 5-28L
