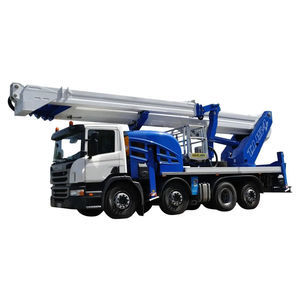

Truck-mounted telescopic boom lift forSte 35TJ

hydraulicelectricoutdoor

The forSte 35TJ is a truck mounted boom lift telescopic with articulated jib that can be installed on trucks from 18 tons. It reaches a working height of 35m and a horizontal reach of 30m, in addition has a large load capacity of 400 kg (4 operators + material). It is an equipment with extremely compact measurements that make it an excellent solution to work in hard-to-reach industrial and urban areas. The aerial platform truck forSte 35TJ is equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space and the required features, the electronic platform control system automatically calculates the safe work area, based on the open position of the four stabilizers. Robustness with great mobility The truck mounted boom lift forSte 35TJ can be equipped with a boom mounted hydraulic winch with a capacity of 500/1000 kg, which can be used by removing the aluminum basket. The rotation of the aerial part is 700º. This feature increases the productivity of the platform, avoiding repositioning times The dimensions of the aluminum basket are 2300 x 900 x h 1100 mm, expanding hydraulically to 3300 mm to increase the operating space. The rotation of the basket is 360º (180 ° left + 180 right) allowing great versatility of positioning for the work. The emergency controls are remotely controlled by radio control to allow the operator to position himself according to the best point of visibility of the entire assembly during the maneuver.
