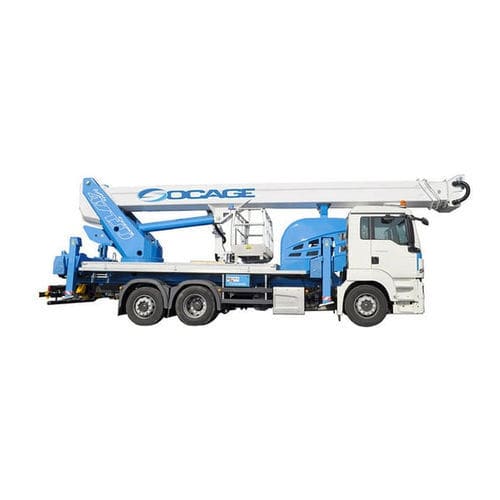

Truck-mounted telescopic boom lift ForSte 47TJJ

hydraulicelectricoutdoor

The truck mounted aerial platform 47TJJ is equipped as standard with a multi-zone stabilization system that allows the operator to choose between different positioning options depending on the available space for the truck; In addition, the rear stabilizers of the 47TJJ consist of 2 hydraulic extensions that increase the stabilization area and, therefore, the maximum performance of the equipment. The Socage forSte 47TJJ is a double JIB / jib telescopic aerial platform that can be installed on trucks with p.t.t. minimum from 18 tons. This model is provided with a secondary boom that allows the equipment to perform maneuvers that would not be possible with a basket with only one JIB / jib. It reaches a working height of 47m and a horizontal reach of 30m, in addition has a large load capacity of 600 kg (6 operators + material) This model is equipped as standard, on the platform controls, with an LCD screen (7 ″) that allows the operator to directly control different information such as: the 2D work area, the state of the limiter, the state of the stabilizers, etc. Truck mounted aerial platform 47TJJ | Large work area The emergency controls are remotely controlled by radio control to allow the operator to position himself according to the best point of visibility of the entire assembly during the maneuver.
