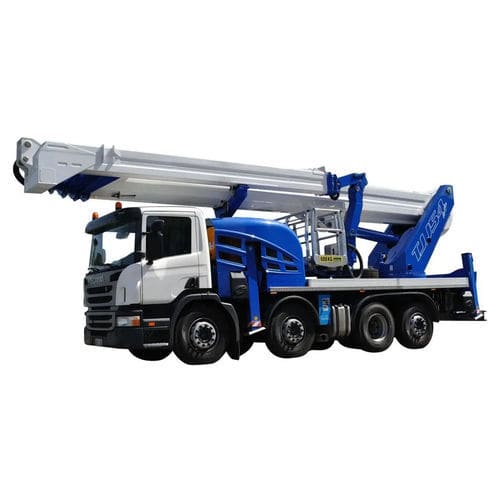

Truck-mounted telescopic boom lift JIB 54TJJ

hydraulicelectricoutdoor

54TJJ is a telescopic aerial platform with jib that can be installed on trucks with p.t.t. minimum from 26 tons. This model is provided with a secondary boom that allows the equipment to perform maneuvers that would not be possible with a basket with only one JIB It reaches a working height of 54m and a horizontal reach of 40m on on 32-ton trucks, in addition has a large load capacity of 600 kg (6 operators + material) This model is equipped as standard, on the platform controls, with an LCD screen (7 ″) that allows the operator to control different information such as: 2D work area, limiter status, stabilizers status, etc. The 54TJJ is equipped as standard with a multi-zone stabilization system that allows the operator to choose between different options depending on the available space for the vehicle; In addition, the rear stabilizing cross members of the new 54TJJ consist of 2 hydraulic extensions that increase the stabilization area and, therefore, the maximum performance of the equipment. • Extendable aluminum basket with dimensions 2300/3600 x900x1100 mm • SOCAGE convertible basket possibility (Eternit) • Basket rotation 360° • Rotation turret 700° • 2 ° Jib 180 ° manual rotation • Possibility of winch on removable JIB • Automatic stabilization • Partially stabilized work areas • Auto lock • Basket control station with console on Socage design including joystick and 7 “LCD display with real-time information
