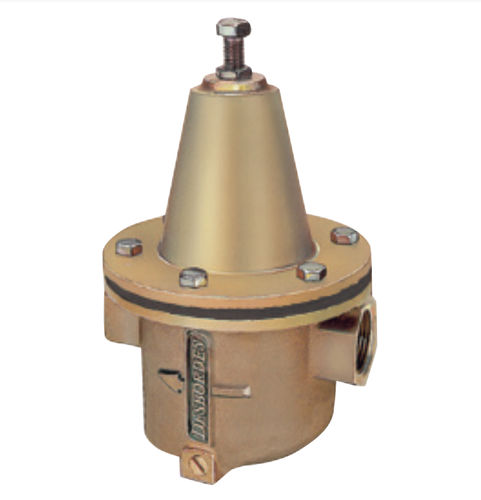

Water relief valve 10 BIS RCEPDMstandardbronze
Add to favorites
Compare this product
Characteristics
- Fluid
- for water
- Valve plug seal material
- EPDM
- Other characteristics
- standard, bronze
- DN
Max.: 80 mm
(3.15 in)Min.: 10 mm
(0.394 in)- Flow rate
Max.: 56.5 m³/h
(1,995.28 ft³/h)Min.: 0.65 m³/h
(22.95 ft³/h)- Pressure
25 bar
(362.6 psi)- Weight
Max.: 17.9 kg
(39.46 lb)Min.: 1.25 kg
(2.76 lb)
Description
for water distribution domestic and individual
10 BIS : With 1/4'' plugs on both sides to allow pressure gauge connection
Possibility of assembly of compensating spring (except for 4'' size) to obtain settings at 0.5 bar
Setting : from 1 to 6 bar (indicative value according to EN1567 standard)
