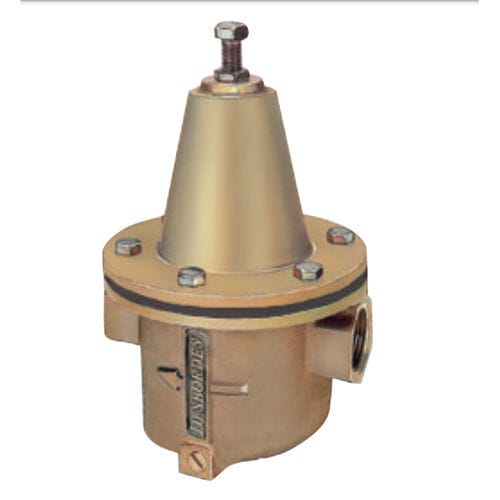

Diaphragm valve 10BISpneumatically-operateddistributionpressure-reducing
Add to favorites
Compare this product
Characteristics
- Type
- diaphragm
- Operation
- pneumatically-operated
- Function
- distribution, pressure-reducing
- Media
- for hot water
- Body
- bronze
- Applications
- for water
- DN
Max.: 100 mm
(3.937 in)Min.: 10 mm
(0.394 in)- Pressure
25 bar
(362.6 psi)- Temperature
Max.: 80 °C
(176 °F)Min.: -10 °C
(14 °F)
Description
for water distribution domestic and individual
10 BIS : With 1/4'' plugs on both sides to allow pressure gauge connection
Possibility of assembly of compensating spring (except for 4'' size) to obtain settings at 0.5 bar
Setting : from 1 to 6 bar (indicative value according to EN1567 standard)
Pre-set at 3 bar
