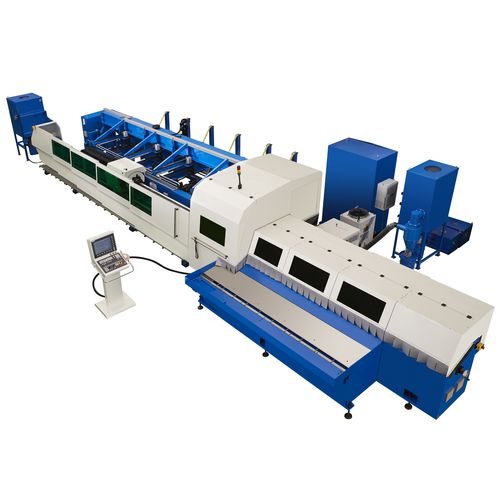

Fiber laser cutting machine SLT-152-FIBER

for aluminumfor steelfor stainless steel

Laser Cutting Line for Tubes and Profiles Cutting capacity up to OD 152 mm SOCO introduces its newest generation of tubes and profiles processing technology – the Fiber Laser Tube Cutting System. With over 40 years of experience in designing, manufacturing and tube cutting technology, SOCO is specialized in solutions for the Tube and Pipe industry. The new Laser Tube Cutting Line is the ultimate solution for joining multiple machining processes in one system for maximum flexibility, automation and performance. • Capacity up to OD 152 mm • Cutting Lengths up to 2,000 mm or 3,000 mm (longer lengths by request) • Wall thickness from 0.6 - 6.0 mm (Mild Steel) • Automatic Bundle Loading System with Material Alignment • Automatic Unloading System with Conveyor • Equipped with 1.0 kW (Standard) or 2.0 kW (Optional) Laser Resonator • Multi-Axis CNC Controls with Touch Screen Interface • SOCO CAD-CAM system for Tubes and Profiles with built-in Nesting • SOCO i2 (Intelligent Interface) 3D operation software • Cutting round, square, rectangle and various profile shapes • Enclosed Workstation for maximum safety • Automatic Distance Control • Laser Resonator Cooling and Fume extraction systems • Automatic Compensation after measuring of material • Seam Detection before laser cutting (Optional) • Mandrel for spatter extraction (Optional) • Feeding & unloading length detection (Optional) • Automatic Laser Cutting Path Planning (Optional) Laser Tube Cutting for Various Shapes Round Tube Square Tube Rectangular Tube Oval Tubes L-shaped profiles C-shaped profiles Mild Steel, Stainless Steel and Aluminum materials
