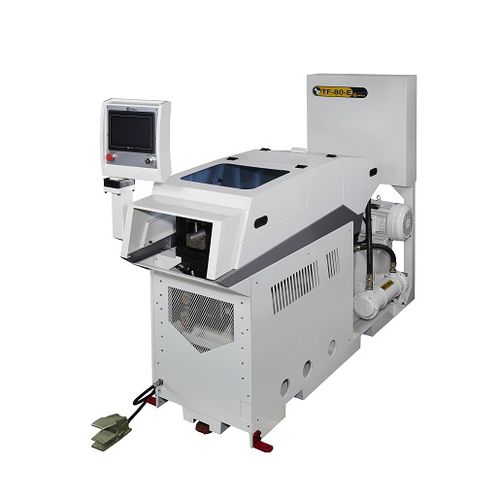

Pipe-end forming machine TF-80-E

tubemetalhydraulic

The SOCO TF Tube End Former Series is widely used in numerous end forming applications and industries, such as automotive exhausts, furniture, air conditioning, among others. These machines are different than conventional end formers, due to their low setup, high flexibility, superior precision and compact design. These machines go up to 82 mm in size, and incorporate hydraulic operation and touch screen control. They may be fitted with 1 or 2 operating stations to process operations on tube ends and are suitable for both straight and bent tubular parts. C Types The C Type machines are designed for common end forming applications including tube expansion, reduction and slotting. The C type machines use segmented tooling consisting of expanding segments and reducing jaws, with extremely quick setup (drop down tools). E Types With similar capabilities as the C type, the E type adds a Ram and Vise Forming feature, which allows it to form even more complex shapes, such as various types of beading and flaring processes, among other kinds of end forming. IO Types The I/O type is used for precision sizing of tubes, and uses a combination of expanding segments and reducing jaws for accurate control of the inside and outside diameters. These can be sequenced in any order for improved accuracy and reduced ovality. The I/O also incorporates a touch screen control for quick setup.
