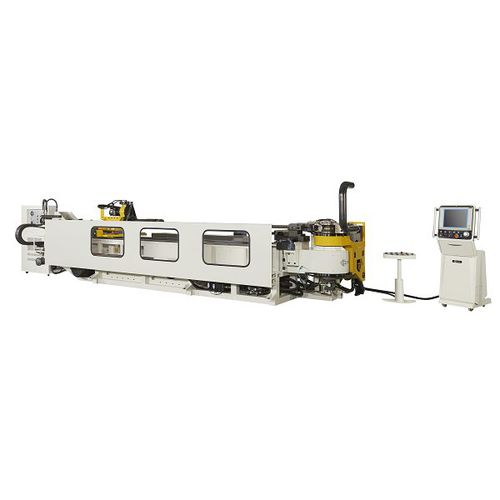

Servo-electric bending machine SB-110X6B-1S/2S

tubehorizontalCNC

6B series Tube Benders with models that extend up OD 168 mm capacity, the SOCO CNC Tube Benders ( Pipe Bending Machines ) 6 axis line brings the optimal tube bending solutions for the automotive, trucking, buses, healthcare, boiler, ship building and other industries 6 servo electric / proportional servo controlled axis Feeding Rotation Tube Bending Horizontal Movement Pressure Die Assist 6 individually programmable axe pipe bending machine Programmable 2 speeds + early mandrel extraction SOCO proprietary control software with IPC & Touch Screen Individually controllable pressure die assists for each bending stack Built-in wiper die, pressure die and clamping die seats High accuracy and repeatability ( +/- 0.1mm & +/- 0.1° for all axes ) Ability for 1D bending (*) High performance and high speed Single and multi-stacks models Automatic mandrel lubrication system Centralized greasing and lubrication system for all sliding areas SOCO bending simulation and collision detection software (Optional )
