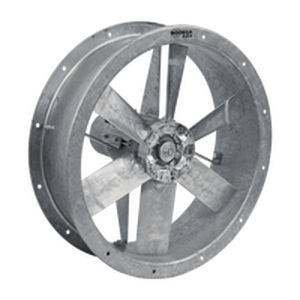

Wall-mounted fan HFW/EC seriesreversibleIP55axial
Add to favorites
Compare this product
Characteristics
- Type
- wall-mounted, reversible, IP55
- Configuration
- axial
- Function
- ventilation
- Supply voltage
- 230VAC, 220VAC, 380VAC, 480VAC
- Drive mechanism
- EC motor
- Material
- galvanised steel
- Applications
- for industrial applications
- Environmental characteristics
- eco-friendly
- Air flow
Min.: 13,600 m³/h
(480,279.467 ft³/h)Max.: 38,900 m³/h
(1,373,740.535 ft³/h)- Diameter
Min.: 666 mm
(26.22 in)Max.: 1,118 mm
(44.016 in)- Rotational speed
950 rpm, 1,435 rpm, 1,450 rpm
(5,969 rad.min-1, 9,016 rad.min-1, 9,111 rad.min-1)- Noise level
Min.: 74 dB
Max.: 89 dB
Description
Hot-dip galvanised tubular axial fans, with EC Technology IE5 motor with integrated electronics, specially designed for high energy efficiency.
Fan:
• Airflow direction from motor to impeller.
• AL version rotors made of cast aluminium.
• Support ring in sheet steel with double flange and cable glands for motor supply.
• Hot dip galvanised tubular sheet steel casing.
Motor:
• High efficiency EC Technology motors with integrated electronics, regulated by 0-10 V or 4-20 mA.
• IE5 efficiency motors, class F and IP55 protection.
• Single-phase 220-277 V 50/60 Hz and three-phase 380-480 V 50/60 Hz.
• Working temperature: -25 ºC +60 ºC.
EC CONTROL:
Supplied as an optional accessory. Control panel for ventilation systems with EC Technology motors with the electronics integrated in the motor itself. With the following characteristics:
• CPC: Constant pressure control.
• CFC: Constant flow control.
• DAY/NIGHT: Double pressure setpoint adjustment according to time of day.
• External sensor: Compatible with temperature, humidity, air quality or CO sensor.
• Equipment preconfigured in constant pressure mode with 100 Pa set point.
Finish:
• Hot dip galvanised.
On request:
• Airflow direction from impeller to motor.
• Fibreglass reinforced polyamide PL version impellers.
• 100% reversible impellers.
