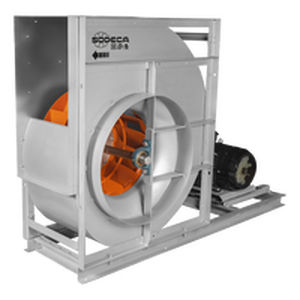

ATEX fan CSXRT seriesIP55centrifugalextraction
Add to favorites
Compare this product
Characteristics
- Type
- ATEX, IP55
- Configuration
- centrifugal
- Function
- extraction
- Supply voltage
- 230VAC, 400 VAC, 690 V
- Drive mechanism
- electrically-powered
- Material
- galvanised steel
- Other characteristics
- backward curved
- Air flow
Min.: 1,908 m³/h
(67,380.384 ft³/h)Max.: 38,002 m³/h
(1,342,027.965 ft³/h)- Rotational speed
Min.: 535 rpm
(3,362 rad.min-1)Max.: 2,615 rpm
(16,431 rad.min-1)
Description
Belt driven single inlet centrifugal fans with and backward curved impeller, electric motor, pulleys, belts and guards
Fan:
• Galvanised steel sheet casing.
• Backward curved impeller made of painted sheet steel.
• Maximum temperature of air to be carried: -25 ºC +85 ºC.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Three-phase 230/400 V 50 Hz (up to 4 kW) and 400/690 V 50 Hz (powers greater than 4 kW).
• Working temperature: -25 ºC +50 ºC.
Finish:
• Galvanised steel sheet.
On request:
• Different outlet positions.
• Special windings for different voltages.
• With two speed motors.
• ATEX certification.
