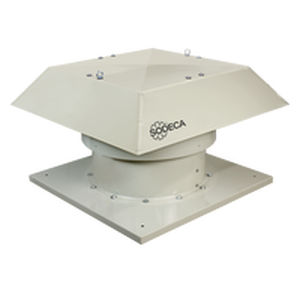

IP55 fan CKDR seriescentrifugalfume exhaustanti-corrosion
Add to favorites
Compare this product
Characteristics
- Type
- IP55
- Configuration
- centrifugal
- Function
- fume exhaust, anti-corrosion
- Supply voltage
- 230VAC, 400 VAC
- Drive mechanism
- electrically-powered
- Material
- galvanised steel
- Other characteristics
- backward curved
- Air flow
Min.: 2,100 m³/h
(74,160.8 ft³/h)Max.: 11,030 m³/h
(389,520.774 ft³/h)- Rotational speed
Min.: 1,370 rpm
(8,608 rad.min-1)Max.: 2,830 rpm
(17,781 rad.min-1)- Noise level
Min.: 56 dB
Max.: 72 dB
Description
F400 extractor fan units with a large door for ease of maintenance and 40 mm acoustic insulation slab
Fan:
• Galvanised sheet steel structure.
• 40 mm acoustic insulation.
• Backward curved impeller made of sheet steel.
• Approved in accordance with standard EN 12101-3, with certificate no.: 0370-CPR-2358.
• Changeable opening door direction thanks to its interchangeable hinges.
• Adjustable in different positions.
• Prepared for continuous work at 120 ºC.
• Motor cover accessory (CM) supplied with fan.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Class F motors with ball bearings and IP55 protection.
• Single-phase 230 V 50 Hz and three-phase 230/400 V 50 Hz.
• Working temperature: -25 ºC +120 ºC.
Finish:
• Galvanised steel sheet.
On request:
• Special windings for different voltages.
