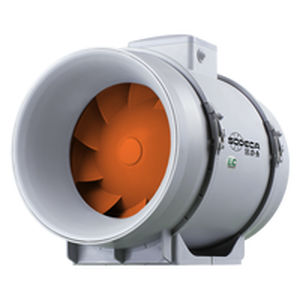

In-line fan NEOLINEO/EW seriesductIP44centrifugal
Add to favorites
Compare this product
Characteristics
- Type
- duct, IP44
- Configuration
- centrifugal
- Function
- extractor, ventilation
- Supply voltage
- 230VAC, 220VAC, 240 VAC, 115VAC, 110VAC, 130 VAC
- Drive mechanism
- with asynchronous motor
- Material
- plastic
- Ecological characteristics
- long-life
- Other characteristics
- in-line
- Air flow
Max.: 1,900 m³/h
(67,097.867 ft³/h)Min.: 90 m³/h
(3,178.32 ft³/h)- Rotational speed
Max.: 3,300 rpm
(20,735 rad.min-1)Min.: 1,285 rpm
(8,074 rad.min-1)- Noise level
Max.: 61 dB
Min.: 21 dB
Description
In-line duct extractor fans with a detachable body and small size, fitted with an EC Technology motor
Fan:
• Plastic casing with double insulation.
• External terminal box with variable position.
• Quick and easy to install.
Motor:
• EC Technology motors fitted with long-life ball bearings.
• IP44 protection.
• Adjustable speed via 0-10 V signal.
• Single-phase 110-240 V 50/60 Hz.
• Working temperature: -20 ºC +60 ºC.
Finish:
• In white plastic material.
