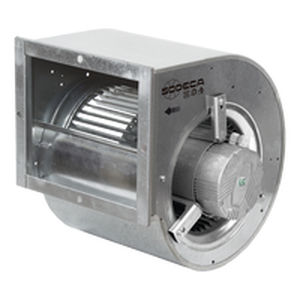

IP54 fan CBD/B/EC series

centrifugalventilationanti-corrosion

Double inlet centrifugal fans, direct motor EC Technology IE4 with integrated electronics and without support feet Double inlet centrifugal fans, direct motor EC Technology IE4 with integrated electronics and forward curved impeller, specially designed for high energy efficiency. Fan: • Galvanised steel sheet casing. • Forward curved impeller in galvanised sheet steel. • Supplied with inlet flange and without support feet. Motor: • High efficiency EC Technology motors with integrated electronics, regulated by 0-10 V. • IE4 efficiency motors, class F and IP54 protection. • Single-phase 190-250 V 50/60 Hz. • Working temperature: -25 ºC +60 ºC. EC CONTROL: Supplied as an optional accessory. Control panel for ventilation systems with EC Technology motors with the electronics integrated in the motor itself. With the following characteristics: • CPC: Constant pressure control. • CFC: Constant flow control. • DAY/NIGHT: Double pressure setpoint adjustment according to time of day. • External sensor: Compatible with temperature, humidity, air quality or CO sensor. • Equipment preconfigured in constant pressure mode with 100 Pa set point. Finish: • Galvanised steel sheet.
