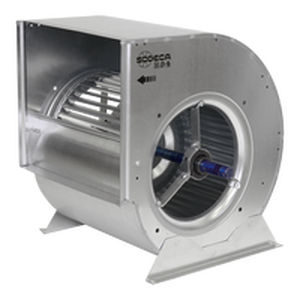

Centrifugal fan CBX seriesextractionventilationanti-corrosion
Add to favorites
Compare this product
Characteristics
- Configuration
- centrifugal
- Function
- extraction, ventilation, anti-corrosion
- Drive mechanism
- electrically-powered
- Material
- galvanised steel
- Other characteristics
- in-line, double-inlet
- Air flow
Max.: 14,500 m³/h
(512,062.667 ft³/h)Min.: 3,650 m³/h
(128,898.534 ft³/h)- Rotational speed
Max.: 2,500 rpm
(15,708 rad.min-1)Min.: 700 rpm
(4,398 rad.min-1)
Description
Belt driven centrifugal fans with double inlet, with shaft output on both sides and with a forward curved impeller
Fan:
• Galvanised steel sheet casing.
• Forward curved impeller in galvanised sheet steel.
• Bearings supported with rubber dampers to avoid vibrations.
• Supplied with PSB support feet.
Motor:
• Motors with IE3 efficiency for powers equal to or greater than 0.75 kW, except single-phase, 2-speed and 8-pole.
• Free shaft with permanently greased ball bearings on both sides.
• Working temperature: -25 ºC +80 ºC.
Finish:
• Galvanised steel sheet.
On request:
• SM motor support and belt tensioner can be supplied.
