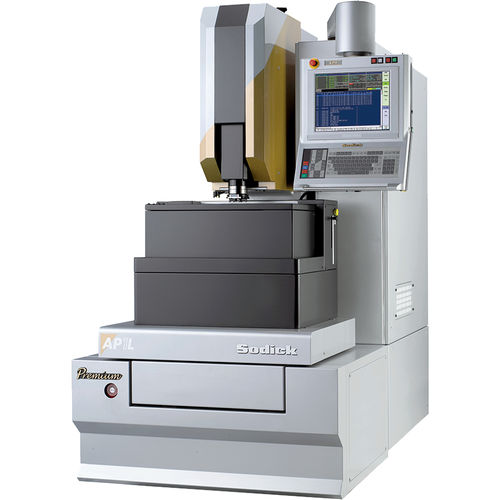

Die sinking electrical discharge machine AP1L

high-accuracyhigh-speedhigh-productivity

Best selling model super-precision die-sinker EDM which can perform more sophisticated machining due to screw-less drive, highly rigid construction, and the latest control technology Main Features Screw-less drive + highly rigid construction The screw-less drive, which uses a linear motor and linear scale, is the ideal drive method which maintains high-speed and high response performance semi-permanently. In addition, the AP1L employs the latest technology in highly rigid construction, small/precision head, and so on. High-speed, high quality finishing The "SVC" circuit increases the machining speed in finishing compared to our previous model, and supplies a uniform discharge pulse between the electrodes. The optimum surface roughness over the machining area is greatly improved, realizing a high quality pear-skin or mirror finish. Three-sided automated vertical slide machining tank The three-sided automated vertical slide machining tank facilitates setup work for super-precision machining. It also enables an optimum cost to be configured when a robot is adopted for automation and labor saving.
