Knife cutting machine 1850 ESCA

textileCNCsingle-phase

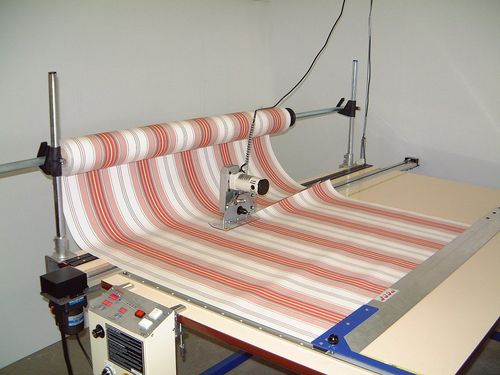

The ESCA 1850 Automatic End Cutter is an innovative tool designed to guarantee precise square cuts while optimising material savings. This equipment is extremely easy to use, especially when quilting. Technical specifications : - Versions available: Manual, Semi-Automatic and Automatic with pneumatic lift. - Drive: Powered by a toothed belt, ensuring reliable performance. - Integrated sharpening: Maintains cutting quality without interruption. - Stroke: Available in lengths from 1,800 mm to 4,000 mm. - Variability: Travel speed options, reinforced and steerable cutting motor for mitre cuts. - Programming: Possibility of defining the number of folds to be cut. - Start-up: Cycle start-up via push-button. - Rail lift: To hold the cut ply in place. - Counter clamp: With manual lift to secure the other end of the material. Capacities : - Maximum thickness: 12 mm as standard, up to 25 mm on request. - Blade: 110 mm diameter. - Voltage: Operates on 240 V single-phase. Applications The ESCA 1850 end cutter is ideal for a variety of sectors, including - Textile industry: For precise cuts in fabrics and soft materials. - Packaging: In the production of cartons and other packaging. - Manufacturing: Used in the automotive and aerospace industries for specific parts. In summary, the ESCA 18 Automatic Butt Cutter In short, the ESCA 1850 Automatic End Cutter is a versatile, high-performance tool that guarantees quality cuts while optimising resources.
