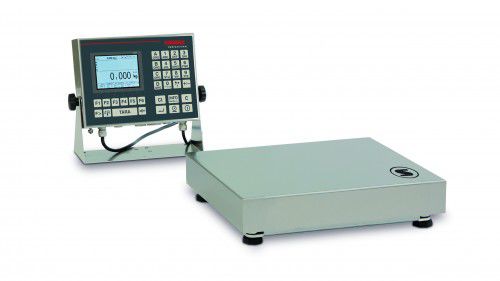

Electromechanical scale 74xx, 94xx

countingplatformwith separate indicator

74xx, 94xx Bench scale stainless steel • - Including Terminal 3025 and wall bracket • - Easy-to-read 3.5“ TFT colour display • - Weighing platform made from 1.4301 stainless steel • - Choice of 5 platform sizes • - Protection class IP 67 Features Weighing platform: • - Approvable two or three-range scale (accuracy class III) and high-resolution single-range scale, not approvable • - Weighing platform made from 1.4301 stainless steel, removable for easy cleaning, protection class IP 65 or IP 68/69K also supports high-pressure cleaning • - Base frame made from stainless steel in an extra low-profile modular design • - Load cell made from stainless steel • - Choice of 5 platform sizes • - Scale leveling up to 10 mm with 4 adjustable feet and spirit level (for appr.) • - Cable length: 2.5 m • - Nominal operating temperature: -10°C to 40°C Terminal 3025.01.001: • - Compact housing made of stainless steel 1.4301, Protection class IP67 • - Integrated power supply, 100 – 240 V, 50 60 Hz • - Incl. wall/stand bracket 2503.40.001 • - Protection class IP67 • - Easy-to-read 3.5“ TFT colour display (QVGA 320 x 240 pixels) • - Adjustable background color, dimmable • - Control function as control light • - Large weight display with 11 mm height • - Membrane keypad with alphanumeric key input for a convenient operation • - 5 application programs: Weighing and taring, totalising and order picking, counting and count checking, checking, dynamic switching • - 4 organization data memories, e.g. for article number, customer number, or shipping ticket number • - Barcode management with 10-fold filter and multiscan function • - RS232 interface as standard • - Internally prepared for USB connection, Ethernet interface
