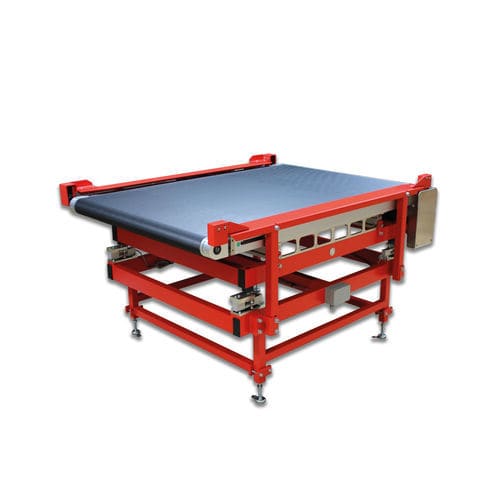

Weighing system 9711

Dynamic scales from Soehnle Professional can be integrated into belt gaps as well as operated as completely independent self-acting scales. The connection options to volume measuring systems and barcode systems make the dynamic scales from Soehnle Professional a perfect addition to your data collection and control. Various belt sizes are available: Belt width:              Belt lengths: 600                        1000, 1200, 1300, 1400, 1600, 1700, 700                        1000, 1200, 1300, 1400, 1600, 1700,  800                        1000, 1200, 1300, 1400, 1600, 1700, 1800, 1900, 2000 900                        1000, 1200, 1300, 1400, 1600, 1700, 1800, 1900, 2000 1000                      1000, 1200, 1300, 1400, 1600, 1700, 1800, 1900, 2000 (specifications in mm) Other belt sizes available on request. Weighing belt versions All weighing belts are usually equipped with an SEW geared motor and can be operated from a speed of 0.3 m/s to 2.0 m/s. The roller diameter of the drive and deflection roller is 80 mm. Features of the weighing belts • Stainless steel sliding plates • Specially selected belts for high concentricity properties • Approved for legal-for-trade applications Features of the scale • Verifiable weighing ranges: from 30 to 100 kg • Approved as automatic scale SWE, SKW, PAW, GAW and PG, according to OIML R51-1 • Accuracy class XIII(1) or Y(a); XIIII(2) or Y(b) • Division from 10 g • Resolution up to 3,200 verifiable digit steps or 2x 3,000 digit steps as dual-range scales
