Electromechanical scale 3015

commercialwith separate indicatorrugged

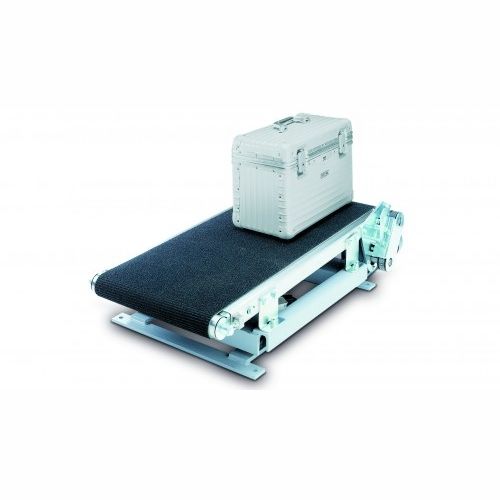

Flight baggage scale • - Maximum load: 150 kg (others available) • - Division: 100 g (others available) • - Approval certificate iaw. OIML R76, class III • - Variable adjustments possible, functions based on operating specifications Features Flight baggage scales consist of • - A scale frame based on customer specifications, for integration into the check-in conveyor, very low-profile design, robust and overload-proof • - The central unit is in a compact housing for integration into the counter or into the scale frame • - The scale display is mounted on a low-profile module carrier for flush integration into the counter as an operator and passenger display • - The 4 or 8-key keyboard is mounted on a low-profile module carrier for flush integration into the counter as an operator and passenger display • - Separating the display and keyboard facilitates ergonomically optimized placement in the counter Features • - Maximum load: 150 kg (others available) • - Division: 100 g (others available) • - Approval certificate iaw. OIML R76, class III • - Variable adjustments possible, functions based on operating specifications • - LC display, backlit, character height: 16 mm • - 2 LEDs for “overload” and “totaling complete” • - Power supply: 100 – 230 V, 50 / 60 Hz, integrated power supply • - Flush installation of display and keyboard, easy cleaning • - All modules (display, keyboard, CPU, etc.) are individual elements connected to each other with connectors
