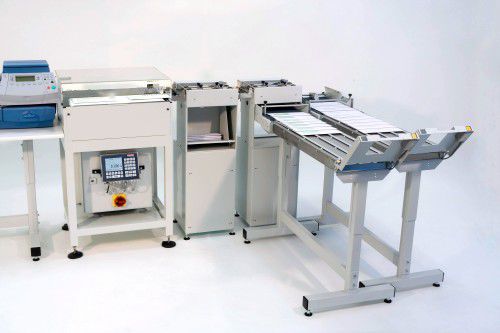

Weighing system 9710

Continuous weighing • Recording of weight for calculating transport costs in the field of logistics • Verifiable as an automatic scale according to OIML R 51 • High bandwidth speeds, fine resolution - 5 Application programs • Modular system components, flexible integration capability Features Soehnle Professional has further developed its proven industrial weighing technology for the special requirements of continuous weighing and recertified it with a lower calibration value. Superstructure • - Scale terminal 3035 • - 2 DMS load cells • - scale conveyor • - Substation steel painted Technical data • - Item number: 9710.00.001 • - Weighing range :3 kg • - Division XIII (1): 1 g • - Minimum load XIII (1): 30 g • - Weight determination: dynamic • - Dimensions L x W x H: 600 x 400 x 800 mm • - Conveyor belt length :600 mm • - Conveyor belt width: 300 mm • - Belt speed :0.2 to 2 m/s • - Supply voltage: 230 V • - Evaluation unit: Soehnle 3035.50.001 • - Serial, Ethernet, USB, Profibus interfaces: Serial, Ethernet, USB, Profinet • - Approval: SKW according to T11021, TC8691 Features & Benefits • - Weighing without belt stop • - Can be integrated into existing production lines and conveyor systems • - High belt speed up to 2 m/s • - Weighing ranges: From 3 to 150 kg • - Readability from 1 g • - Resolution up to 3,200 verifiable digit increments • - Approval as automatic balance SWE, SKW, PAW, GAW and PG, according to OIML R51-1 • - Accuracy class XIII(1) or Y(a); XIIII(2) or Y(b) • - Calibration value e ≥ 1 g - Also available as two-range scale • - Temperature range - 15°C ... 40°C • - Flexible network connection through different bus or serial interfaces
