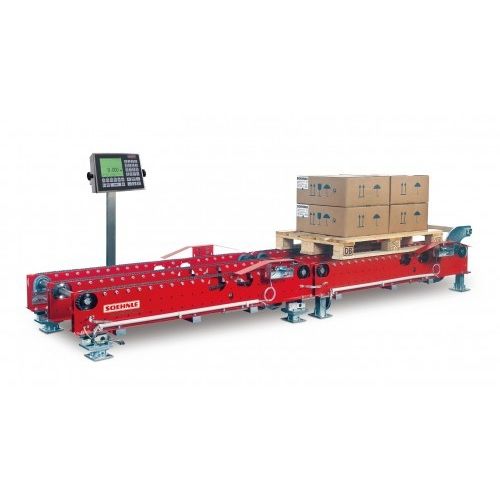

Weighing system 9715

Continuous weighing • - Weight recording for freight cost calculation in the logistics area • - Verifiable as automatic balance according to OIML R 51 • - 5 Application programs • - Modular system components, flexible integration capability Features Soehnle Professional has further developed its proven industrial weighing technology for the special requirements of continuous weighing and recertified it with a lower calibration value. Structure • - Scale terminal 3035 • - 4 DMS load cells • - Scale conveyor • - Substation steel painted Technical data • - Article number: 9715.00.001 • - Weighing range: 1,500 kg • - Digit increment y(a): 0.5 kg • - Weight determination: Static in start/stop operation • - Dimensions: L x W x H 1,800 x 900 x 400 mm • - Conveying speed: 0.2 m/s • - Supply voltage: 400 V • - Evaluation unit: Soehnle 3035.50.001 • - Interfaces: Serial, Ethernet, USB, Profinet • - Approval: SWE according to T11021, TC8691 Features & Benefits • - Can be integrated into existing production lines and conveyor systems • - Weighing ranges: up to 3,000 kg • - Readability from 0.1 kg • - Resolution up to 3,200 verifiable digit increments • - Approval as automatic balance SWE, SKW, PAW, GAW and PG, according to OIML R51-1
