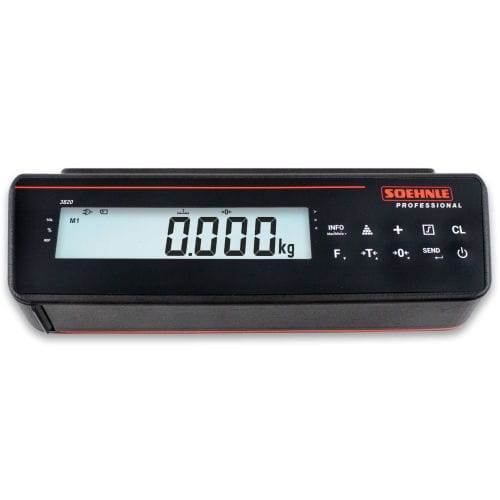

LCD display weighing terminal 3820

benchtopIP67wireless

• Approvable, class III, resolution up to 10.000 e • Fast and stable standstill behaviour (filter type 3) • Backlit LC display, character height: 25 mm • 10-key operation with freely assignable F key • Functions: Weighing, taring, plus/minus weighing, counting (with reference weight optimisation and add mode), count check, checkweighing, totalising/commissioning, percentage weighing, add-weighing, neutral measuring, hold, auto-tare, user filter setting, print/EDP with variable print layout • Pass/fail control function with beeper and visual indicator, Optional: external control light • Realtime clock with date • Optional: Price computing software for price labelling • GLP Protocol • For not approvable version: Internal user calibration for location adjustment and changeover of weight unit from kg to lb • Units in g or kg • Power supply operation: 100 - 240 V / 50 - 60 Hz • Battery operation (6x AA batteries) or optional battery operation with battery pack and charging circuit (battery life approx. 50 hrs., depending on settings) • Wall / stand bracket optional Housing • Compact plastic housing • Protection class IP 42, suitable for dry working environments • Protection class IP 67, suitable for wet environmental conditions • Pressure is compensated by gas-permeable membrane (IP 67) • Dimensions: 303 x 95 x 57 mm Interfaces • Integrated USB interface type B (virtual serial interface) • Further slots for optional interfaces, such as:  • WLAN / Bluetooth® with internal antenna • USB – interface for keyboard wedge • Ethernet • RS232
