Flexible support clamp ISC-SC6-P6E

workpiecefor toolsfor measuring devices

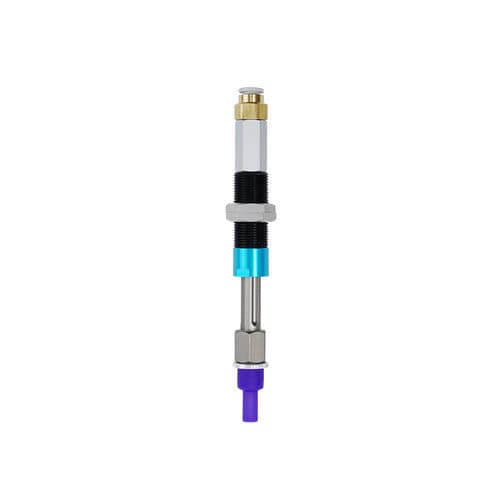

The ISC airbag-type inner support clamp is an innovative flexible clamp that imitates the self-defense shape of puffer fish and is bionic designed. By filling the flexible air bag with air with a certain pressure, the expansion is realized and the inner support-type grasping is completed. Since the input air pressure can be precisely controlled, the clamping force exerted by the fixture on the workpiece can be controlled, and the workpiece is not easily damaged. performance parameter Airbag module overall height H 30.5 Contact surface diameter D 6 Structural Diameter A 14 Working diameter from the bottom height B 6 Effective contact surface height C 12 Airbag module working height E 22.5 Total length N E+105 Use air pressure range/kPa 0-120 Limit expansion outer diameter/mm 7.6 Ultimate load/g 170 Fixture weight/g 36 Use metal rod model VFNT 1421-G18 Installation hole size/mm 14.5
