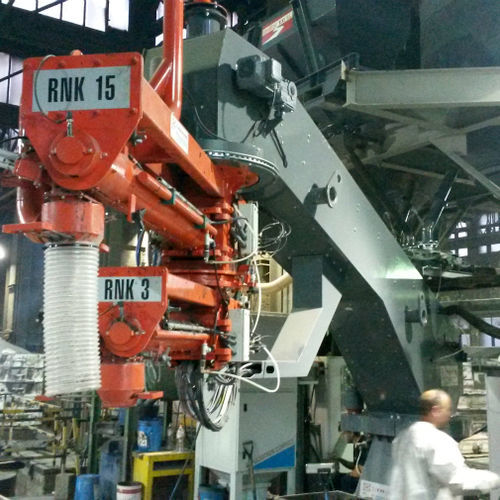

Dynamic mixer RNK SERIES

batchsolidvertical

Output capacity starting from 10 t/h up to 100 t/h. Mixers with double arms: the first arm is for sand transport the second is for mixing the sand with binders. Available models with different lengths from 4 mt up to 9 mt. Book opening type of the mixing arm. Lining of stainless steel in the mixer arm. Half moon mixing blade with lining carry- over. Discharge outlet valve to have a perfect agglomeration also for the first sand. Autocleaning system by means of a nebulization of a inhibitor inside the mixing arm. By request a wide range of optional can be installed: Smart control of the output of the binders and autoregulation between the real quantity of binders and the set points fixed. Blend control between two catalysts (fast and slow ) depending on the environmental temperature. Motorization of one or both arms. Remote control by radio. Apart these features all Sogemi mixers are equipped with high quality components : as Sew eurodrive motoreducer, Skf bearings , Siemens PLc.
