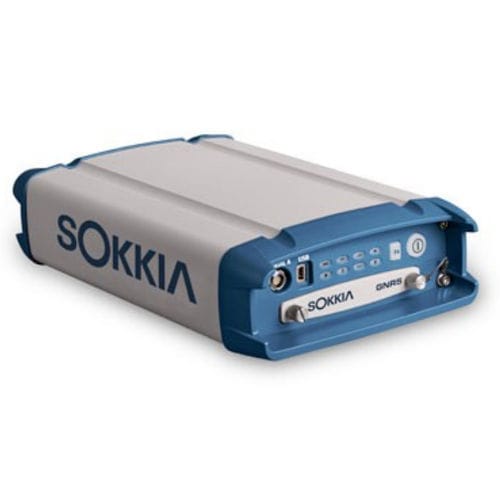

GNSS receiver GNR5

wirelesssatelliteGSM

The GNR5 is a GNSS reference receiver for many types of applications among other GNSS infrastructure network receivers, permanent reference stations, field (mobile) base stations and reference stations for scientific analysis. The GNR5 is capable of tracking all GNSS constellation including GPS, GLONASS, Beidou, Galileo, QZSS as well as SBAS using 452-Channels with optimized satellite tracking technology. In short, the GNR-5 has a rugged and integrated design with longer operating time and high reliability. The GNR5 supports an extended communication options with an advanced web-server functionality. Key GNR5 features include: 452-Channels with optimized satellite tracking technology Superior signal tracking across the entire GNSS spectrum High-precision code and carrier phase measurements up to 100 Hz Built-in Bluetooth® and Wi-Fi connectivity Integrated web interface with advanced receiver management features 32GB SDHC storage support Number of Channels - 452-Channel with optimized satellite technology Signals Tracked - GPS, GLONASS, QZSS, SBAS, Galileo, L-Band and BeiDou (BDS) WAAS / EGNOS / MSAS - Yes Antenna Type - External – Geodetic full wave CR-G5 or PN-A5 antenna Memory - Removable SD/SDHC memory card up to 32 GB and USB Host support for external USB mass storage devices Data Update/Output Rate - 1Hz - 100 Hz selectable Data Output Format - TPS, RTCM SC104 v2.x and 3.x, CMR, CMR+, BINEX, RINEX Cellular Communications - Integrated GSM; GSM Quad-band, CDMA2000, UMTS/HSPA+ Dimensions (w x d x h) - 5.9 x 7.9 x 2.4 in. (150 x 200 x 60 mm) Weight - Less than 2 kg Power Consumption - Less than 5.0 W (typical) Operating Temperature - -40°C to 80°C with external power / -
