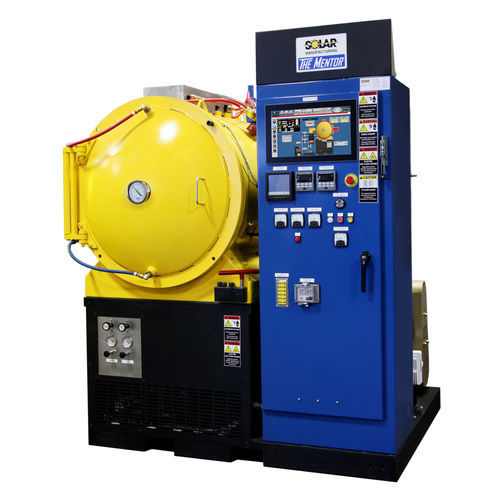

Chamber furnace Mentor®

annealingsinteringtempering

Designed for easy maintenance and minimal downtime Weight capacity of 250 pounds Temperature uniformity of approximately ±10°F (AMS 2750 Compliant) High performance 7.5 HP internal gas quenching up to 15 PSIG (2 Bar) 2-gas backfill (Argon and Nitrogen) 2-gas partial pressure (Nitrogen and Argon) SolarVac® Essentials fully automated and programmable industrial controls package Backed by fully stocked spare parts warehouse and the best technical support Full one year warranty The Mentor Vacuum Furnace Hot Zone Hearth: molybdenum support pins and rails Heating Elements: curved, segmented graphite bands Insulation: six layers of 1/2″ thick high purity rayon graphite felt with a Flexshield hot face Insulation and heating elements are mounted on a heavy duty (0.105″) stainless steel support structure Power Supply MSI SCR power supply rated at 40 KVA 460 volt/3 phase/60 Hertz Vacuum Chamber All stainless steel, double wall, water cooled, horizontal front loading vacuum chamber Hinged and bolted front door permits the furnace to safely quench at positive pressures up to 2-bar Oversized water inlets and outlets assure maximum water flow Gas Quenching System The internal gas quench system provides the lowest resistance, highest efficiency gas flow at positive pressures up to 2-bar. A 7.5 HP motor drives a high-speed turbine fan to recirculate the quench gas straight through the water-to-gas heat exchanger and then into the hot zone at high velocity. The tapered graphite gas nozzles are specifically directed at the work load for optimum cooling. Vacuum Pumping System Mechanical Pump: High capacity, 2-stage, rotary piston pump Diffusion Pump: Varian VHS-6 6″
