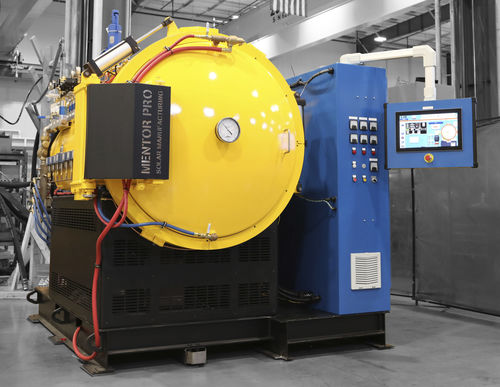

Chamber furnace Mentor® Pro

annealingsinteringtempering

The Mentor® Pro, model HFL-3036-2IQ, is a horizontal, front loading, mid-sized, vacuum heat treating and brazing furnace generally designed and developed to accommodate mid-size furnace loads in an efficient and economical manner. It is a high temperature, high vacuum, batch-type furnace with electrical resistance heating elements. The Mentor® Pro is mounted on a portable platform for easy shipment and maneuverability. Designed for heat treating processes such as hardening, brazing, stress relieving, normalizing, annealing, tempering, sintering, homogenizing, degassing, diffusion bonding, and creep forming. Features and Benefits Designed for easy maintenance and minimal downtime Weight capacity of 1,000 pounds Temperature uniformity of approximately ±10°F (AMS 2750 Compliant) High performance 50 HP internal gas quenching up to 15 PSIG (2-Bar) 2-gas backfill (Argon and Nitrogen) 2-gas partial pressure (Nitrogen and Argon) SolarVac® Essentials fully automated and programmable industrial controls package Backed by fully stocked spare parts warehouse and the best technical support Full one year warranty Hot Zone Hearth: Molybdenum support pins and rails Heating Elements: curved, segmented graphite bands Insulation: Four layers of 1/2″ thick high purity rayon graphite felt with a Flexshield hot face Insulation and heating elements are mounted on a heavy duty (0.105″) stainless steel support structure Power Supply MSI SCR power supply rated at 90 KVA 400 / 460 volt / 3 phase / 60 Hertz Vacuum Chamber Carbon steel, double wall, water cooled, horizontal front loading vacuum chamber
