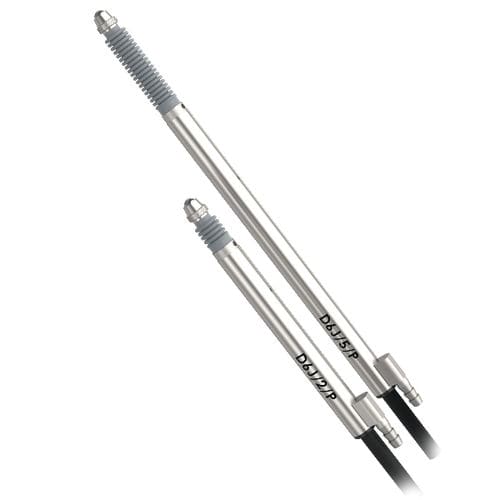

Digital touch probe D6J/P

linear measurementpneumatic

Digital Gauge Probes Narrow Body | Pneumatic Push D6J/P •6 mm diameter •Excellent for measuring features close together •2, 5 and 12 mm displacement transducer measuring ranges •Accuracy better than 0.1 µm •Repeatability better than 0.05 µm •Resolution better than 0.01 µm •Range of linear displacement contact sensor tips available •Pneumatic actuation contact sensor •Standard gauge probe tip force 0.7 N with 1 bar pressure •Superior performance compared with traditional Linear Variable Differential Transformer (LVDT) displacement sensors The pneumatic versions of the narrow body digital displacement sensors (gauge probes) provide users with an effective solution to build automatic gauges for precision measurements of multiple parts. When the air is off the probe tips are automatically withdrawn enabling the part to be placed inside the gauge without contacting the displacement transducer tip. The narrow body displacement sensors facilitate checking of features that are close together which could not easily be measured using standard digital displacement sensors or conventional LVDT sensors. Solartron Metrology has reduced the diameter of these displacement sensors without compromising the reliability, life or performance.
