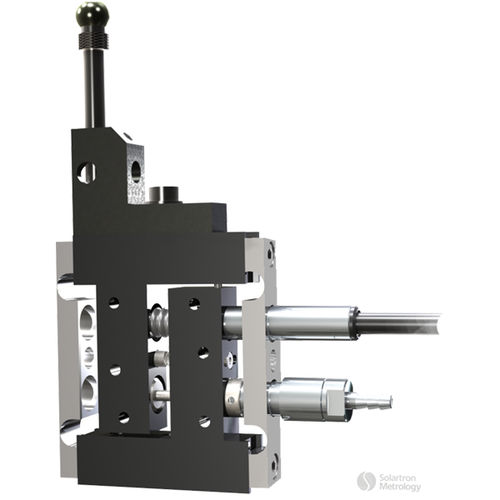

Universal flexure gauge DU/P

DU/P – Parallel Flexure Gauges Pneumatic acctuation •1, and 2 mm measuring ranges •Accuracy better than 0.1 µm •Resolution better than 0.01 µm •Repeatability better than 0.05 µm •Pneumatic actuation •IP65 Protection •Removable leaves for ease of repair •Tested to more than 30 million operating cycles Parallel Flexures with high resolution and excellent repeatability make Solartron’s Flexure Transducers the frst choice for high speed precision gauging. With no sliding moving parts, the flexure will maintain performance for millions of cycles and are virtually free from hysteresis. Flexures can be mounted such that there is little or no stress through the gauge line enablingprecision profling of moving materials such as rotating shafts, brake discs etc. With resolution better than 0.05 µm at speeds up to 3906 readings per second, the flexure with Orbit® provides an excellent dynamic solution Combining multiple sensors using the Orbit Digital Measurement network is easy and data can be read using a Solartron readout or the Gauge Computer Software making system integration simple. Attention to detail in both design and manufacture of the displacement sensor ensures precision measurement throughout the linear displacement transducer's life. Solartron Metrology offers a large range of displacement sensors to suit multiple applications with different cable outlets (radial or axial), multiple measuring ranges, different cable types like steel braided which provides additional protection for displacement sensors that are being used in harsh environments. If you cannot find the displacement senor you need please contact your local sales office or distributor.
