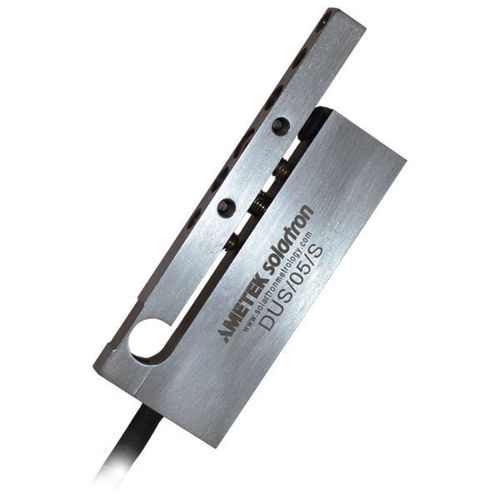

Measurement touch probe DUS

spring

DUS –Single Leaf Flexure •0.5 mm measuring range •Accuracy better than 0.1 µm •Resolution better than 0.01 µm •Repeatability better than 0.01 µm •Spring actuation •IP65 sealing •Normal or Reverse Operation •Extension armsto increase measuring range With the same advantages as the parallel flexure the single leaf flexure offers the gauge builder access to even more measurement points. With careful use of extension arms measurements can be made inside slots or between features where a conventional pencil probe cannot reach. Combining multiple sensors using the Orbit Digital Measurement network is easy and data can be read using a Solartron readout or the Gauge Computer Software making system integration simple. Attention to detail in both design and manufacture of the displacement sensor ensures precision measurement throughout the linear displacement transducer's life. Solartron Metrology offers a large range of displacement sensors to suit multiple applications with different cable outlets (radial or axial), multiple measuring ranges, different cable types like steel braided which provides additional protection for displacement sensors that are being used in harsh environments. If you cannot find the displacement senor you need please contact your local sales office or distributor.
