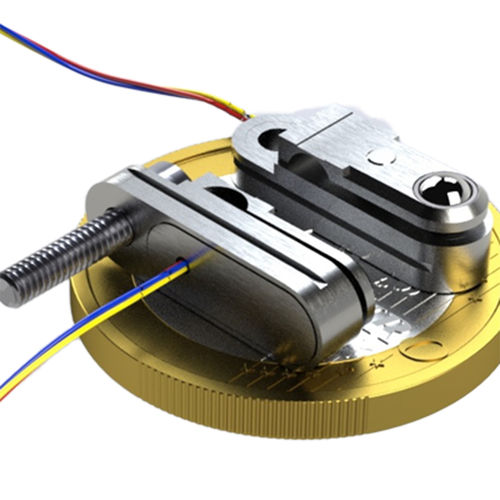

Universal measurement transducer MicroFlex

flexure

Introducing the MicroFlex, a Micro Single Leaf Flexure, which has Solartron quality ruggedness and accuracy in a tiny package; Just 5.5 mm high. Key features • Measures just 16.5 long x 5 wide x 5.5mm High • 0.4mm measurement range • 17-7PH Steel Body for Maximum Performance • Mounting can be accomplished using an M2 screw or gripping from the side • Axial or Right Angle cable options available • Ideal for mounting in Bore Gauge Equipment • Tungsten Carbide, Ruby, & Silicon Nitride Tip Options available • Optional pack of shims so probe is at proper level in a pocket
