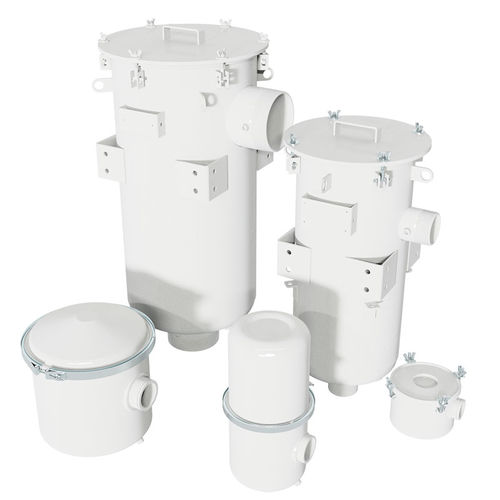

Oil mist filter HDL series

cartridgecoalescingvacuum

The HDL series removes oil mist and aerosols from the discharge of vacuum pumps. Rugged construction, coalescing media options, and Solberg technology make the HDL a proven solution to safeguard work areas from environmentally hazardous oil mist and smoke. Features Captures oil fog, mist or aerosol from exhaust of oil sealed vacuum pumps Waste oil can be recycled Pleated filter element provides increased surface area for low back pressure separation of ultra-fine oil mists Seamless drawn housings (1" - 2.5" connections) O-ring sealed housings Corrosive resistant white powder coat carbon steel Discharge baffle (1" - 2.5" connections) 1/4” NPSC drain tap Technical Specifications 0.3 micron media; 99.97% efficiency Continuous operating temp: 68°F (20°C) to 180°F (80°C) Mounted vertically Pressure rating (2" - 8", DN125-200 sizes): 7.25 psi (0,5 bar) Pressure rating (1" - 1.5" sizes): 2 psi (0,13 bar) Options Lower back pressure media Application specific gaskets/seals Custom connections Various finishes Stainless steel housings (select models) Nameplate bracket (3" - 8" connections​)
