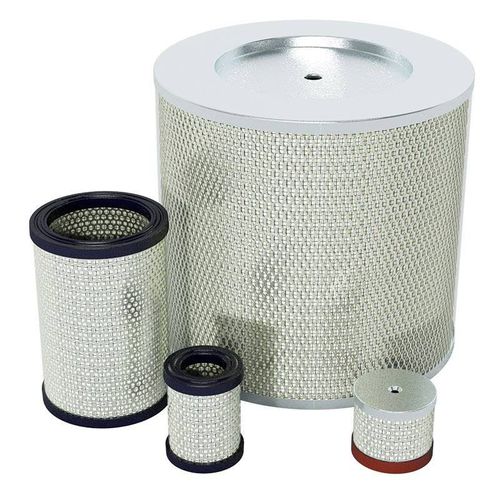

Air filter cartridge FG / GL / PSG series
finemetalfor general purposes

Air filter cartridge - FG / GL / PSG series - SOLBERG Filtration - fine / metal / for general purposes
Air filter cartridge - FG / GL / PSG series - SOLBERG Filtration - fine / metal / for general purposes
Air filter cartridge - FG / GL / PSG series - SOLBERG Filtration - fine / metal / for general purposes - image - 2
Air filter cartridge - FG / GL / PSG series - SOLBERG Filtration - fine / metal / for general purposes - image - 3
Air filter cartridge - FG / GL / PSG series - SOLBERG Filtration - fine / metal / for general purposes - image - 4
Air filter cartridge - FG / GL / PSG series - SOLBERG Filtration - fine / metal / for general purposes - image - 5
Add to favorites
Compare this product


Characteristics

Media
air
Type of filtration
fine
Material
metal
Applications
for general purposes
Domain
industrial
Other characteristics
high-efficiency
Removal rating

0.3 µm

Flow rate

Max.: 3,056 m³/h
(107,921.62 ft³/h)

Min.: 7 m³/h
(247.2 ft³/h)

Description

Our coalescing filter elements capture oil mist aerosols present in the air stream. These elements are designed for use at the discharge of oil-sealed vacuum pumps and compressors. Each is constructed with Solberg’s proprietary filter media packs, consisting of multiple layers and combinations of materials. Once a coalescing filter reaches a desired saturation point, oil within the element begins to drain, and the captured oil can be collected in a housing for reuse or disposal. Replacement Filter Elements - Coalescing Media Solberg uses top-quality, industrial-grade filter media, plastisols, potting compounds, and structural components to achieve exceptional performance. We optimize surface area to offer low pressure drop and long filter life. OEMs, resellers, and end-users know they can trust our coalescing filter elements to perform when oil mist filters are needed. Features of Our Coalescing Filters Eliminate visible emissions when sized and deployed properly Oil-resistant construction materials suitable for most oil types Large surface areas for longer element life Options Endcap Styles B = Closed one end with bolt hole, open on other end D = Element with molded open end, metal closed G = Galvanized metal M = Molded plastisol P = Pleated coalescing media W = Wrapped coalescing media
