Extractor fan SILENT Serieslow-noiseaxial230VAC
Add to favorites
Compare this product
Characteristics
- Type
- low-noise
- Configuration
- axial
- Function
- extractor
- Supply voltage
- 230VAC
- Drive mechanism
- electrically-powered
- Material
- plastic
- Applications
- motor
- Other characteristics
- shutter
- Air flow
92 m³/h, 177 m³/h, 257 m³/h, 319 m³/h
(3,248.949 ft³/h, 6,250.696 ft³/h, 9,075.869 ft³/h, 11,265.379 ft³/h)- Diameter
99 mm, 118 mm, 146 mm
(3.898 in, 4.646 in, 5.748 in)- Rotational speed
1,700 rpm, 2,301 rpm, 2,350 rpm, 2,399 rpm, 2,400 rpm
(10,681 rad.min-1, 14,458 rad.min-1, 14,765 rad.min-1, 15,073 rad.min-1, 15,080 rad.min-1)- Noise level
32 dB, 33 dB, 36 dB
Description
Range of axial extractors with airflow rates of approx. 95 m3/h, for connection to 100 mm diameter circular ducting.
Motor mounted on silent-elastic-blocks which absorb the vibrations and allow offering very low noise level. All the fans are manufactured from injection moulded plastic, fitted with automatic shutter and single phase 230V-50Hz, class B low consumption motor equipped with thermal overload protection. All the fans are class II insulation, IP45 rated and suitable to operate with air temperature up to 40ºC.
Back draft shutter
To prevent air entry and limit heat leakage when the extractor is not operating. It opens due to the pressure of the air.
Silent-blocks
Motor mounted on “Silent-elastic-block” to prevent vibration and noise transmission.

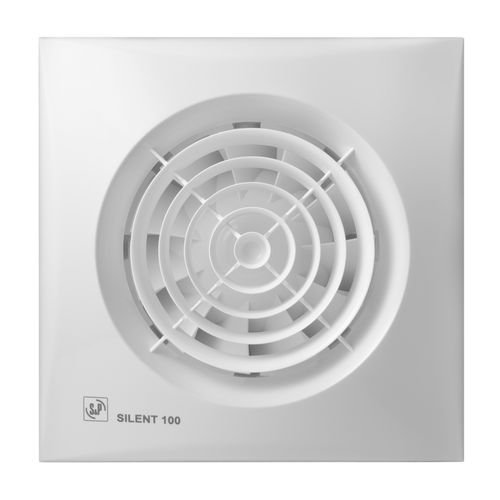

SILENT-100
Quiet operation
In usual extract fans the vibrations are transmitted to the surrounding areas while in SILENT extractor fans the vibrations are absorbed by the Silent Blocks.
