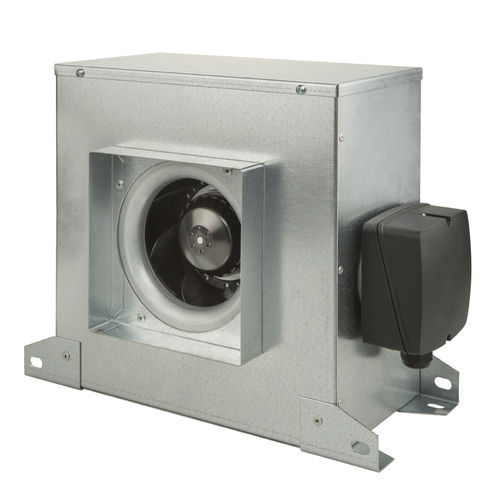

Centrifugal electrical cabinet fan CAB-E Series

Acoustic cabinet fans specifically designed to provide ventilation solutions for dwelling applications. - Low profile acoustic cabinet fans with sound absorbent insulation. - Square duct connection flange on the inlet. - Backdraught shutter fitted on the outlet. - Suitable for mounting in any orientation and operation within ambient air temperatures between -15ºC up to +55ºC. Construction - Fan casing manufactured from heavy gauge sheet steel and internally lined with 7mm thickness of melamine foam. - High efficiency direct drive backward centrifugal impeller. - IP54, class F external rotor motor with thermal overload protection, suitable for single phase supply 230V/50-60Hz. - Fan supplies with four mounting feet and external connection box to ease the installation. Direct drive backward centrifugal impeller IP55 External connection box
