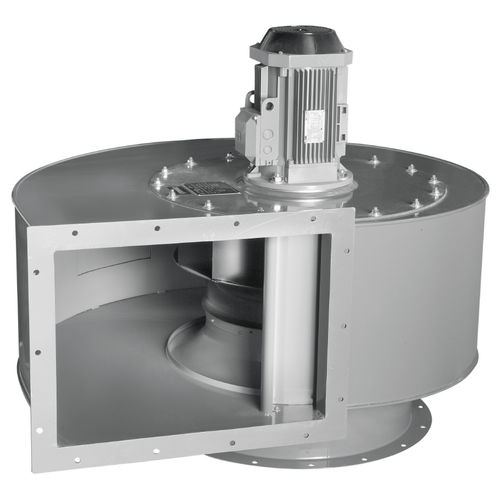

ATEX fan FRP Series

high-temperatureIP55centrifugal

Direct drive, single inlet centrifugal fan. Manufactured from galvanised steel sheet. Fan supplied with inspection door and double flange included. ExII2/-G (Non-Sparking standard ATEX motor). Backward curved impeller made of plated sheet steel or steel sheet protected with anti-corrosion polyester paint coating, dynamically balanced. Designed to continuously circulate air from -20ºC up to 60ºC. Maximum dust quantity 50 mg/m3. Suitable for transporting clean air. Motors 4 pole, IE 2* high efficiency, threephase 230/400V 50Hz up to motor size 132 and 400/690V 50Hz for higher motors. IP55, Class F protection. * From 0.75 kW the motor can be iE2 efficiency controlled by a frequency converter. - Manufactured from different materials. - IE3 motors. - 631 and 632 models with scroll type FR. - 2-speed motors. - 60 Hz versions. - Painted in different RAL colour. - High-temperature versions (up to 150ºC) (B versions: with cooling impeller). ATEX versions On request, explosion proof versions in accordance with ATEX directive for three phase models: Ambient temperature -20°C to +60°C, ambient pressure (abs.) 0,8 bar to 1,1 bar according to EN 14986. - Gas: 2G IIB T2-T3-T4, Motor Exd IIB or ExeII 2G IIB+H2 T2-T3-T4, Motor ExdIIc 3G IIB T2-T3-T4, Motor ExnA (only for 3G zone) 3G IIB+H2 T2-T3-T4, Motor ExnA (only for 3G zone) - Non-conductive dust: 2D IIIB T125°C-T135°C-T195°CT295°C 3D IIIB T125°C-T135°C-T195°CT295°C - Conductive dust (compulsory IP 65 motor): 2D IIIC T125°C-T135°C-T195°CT295°C 3D IIIC T125°C-T135°C-T195°CT295°C Backward curved impeller Inspection door
