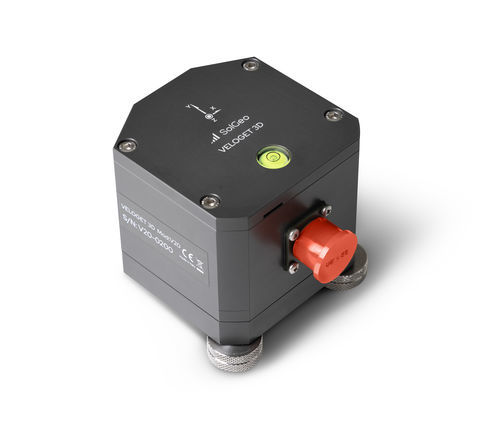

3-axis seismometer VELOGET 3D

1-axis2-axisfor civil engineering

Veloget 3D Seismometer with high sensitivity sensors designed for HVSR and seismic and civil monitoring. Class I triaxial seismometer, compliant with DIN 4150- 3, DIN 45669-1 and UNI 9916. It is supplied in a metal case IP6IP68 rated with cable output, for installations even in presence of water, with adjustable feet and control bubble. It can be also supplied with connector output with IP65 rating. Available in single, biaxial or triaxial configuration for vertical or horizontal applications, with military connector or cable gland for fixed installations. It consists of an electronically linearized geophonic triad, with dynamics greater than 130dB. A special system on the bottom plate allows fixing to the floor/wall with a single plug and the three adjustment screws ensure leveling. The internal electronics permit execution of sensor test to check functionality by driving the dedicated test input APPLICATIONS • HVSR measurement • Civil monitoring • Seismic networks • Building monitoring Dimention: 90x90x95 mm Connector excluded Weight: 1600g
